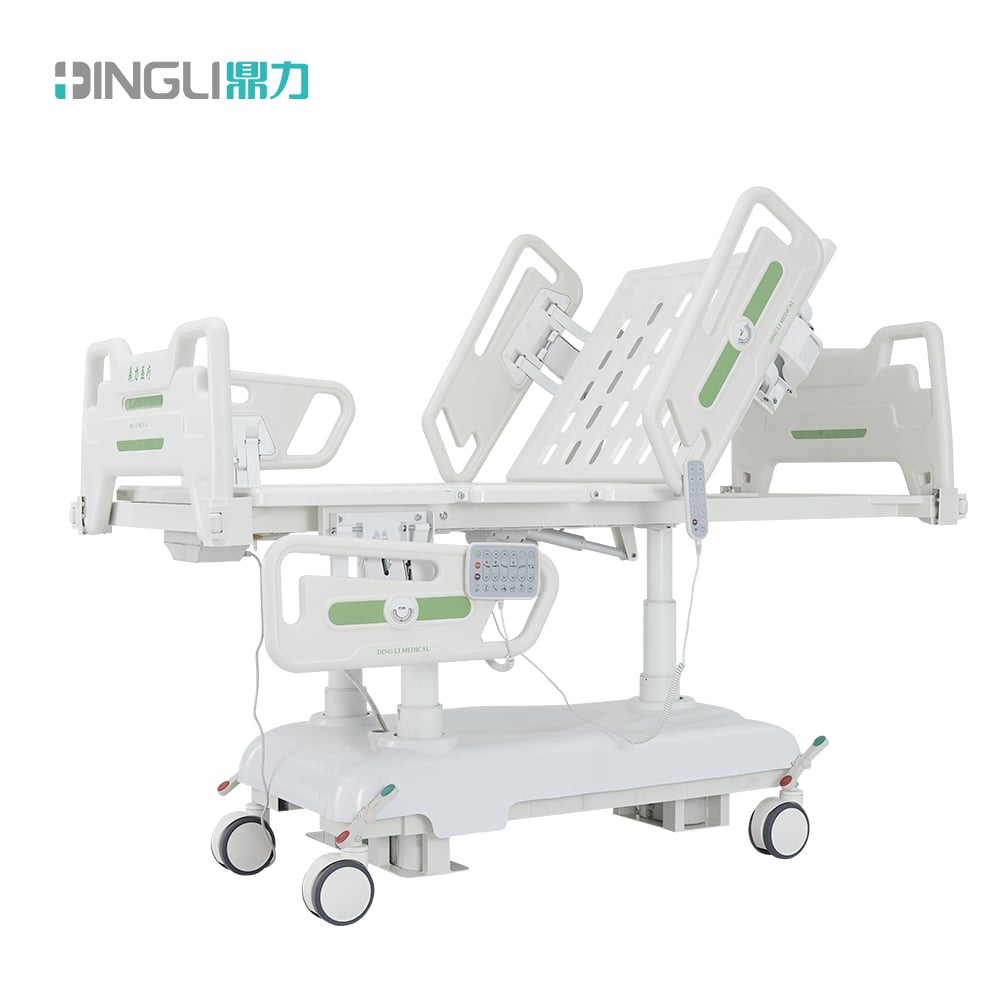

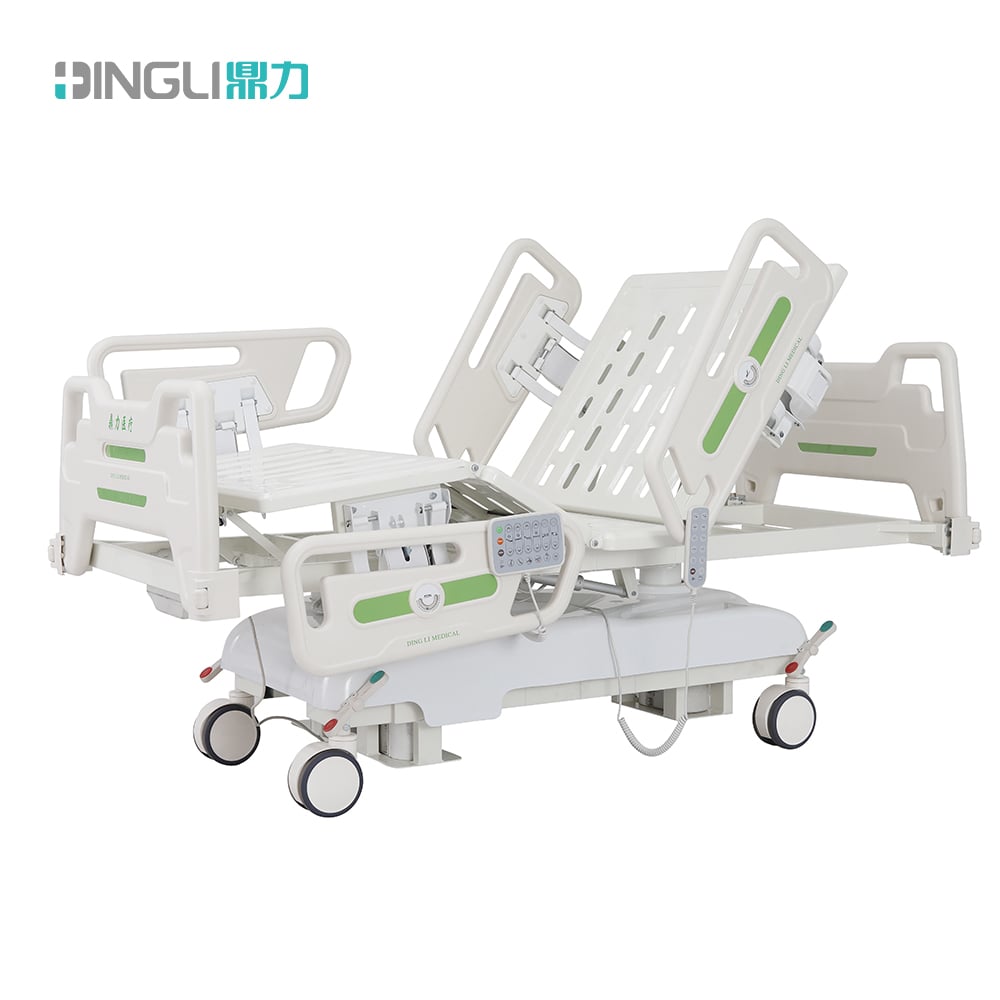

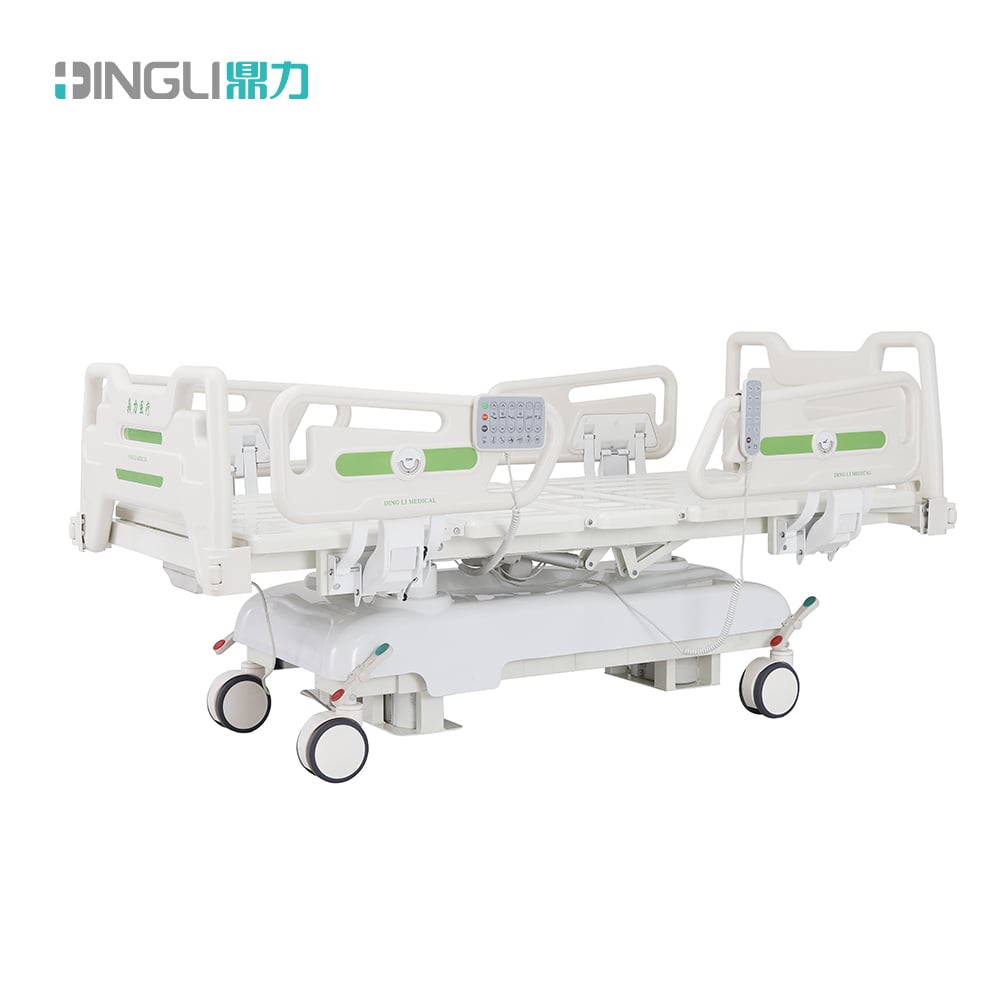

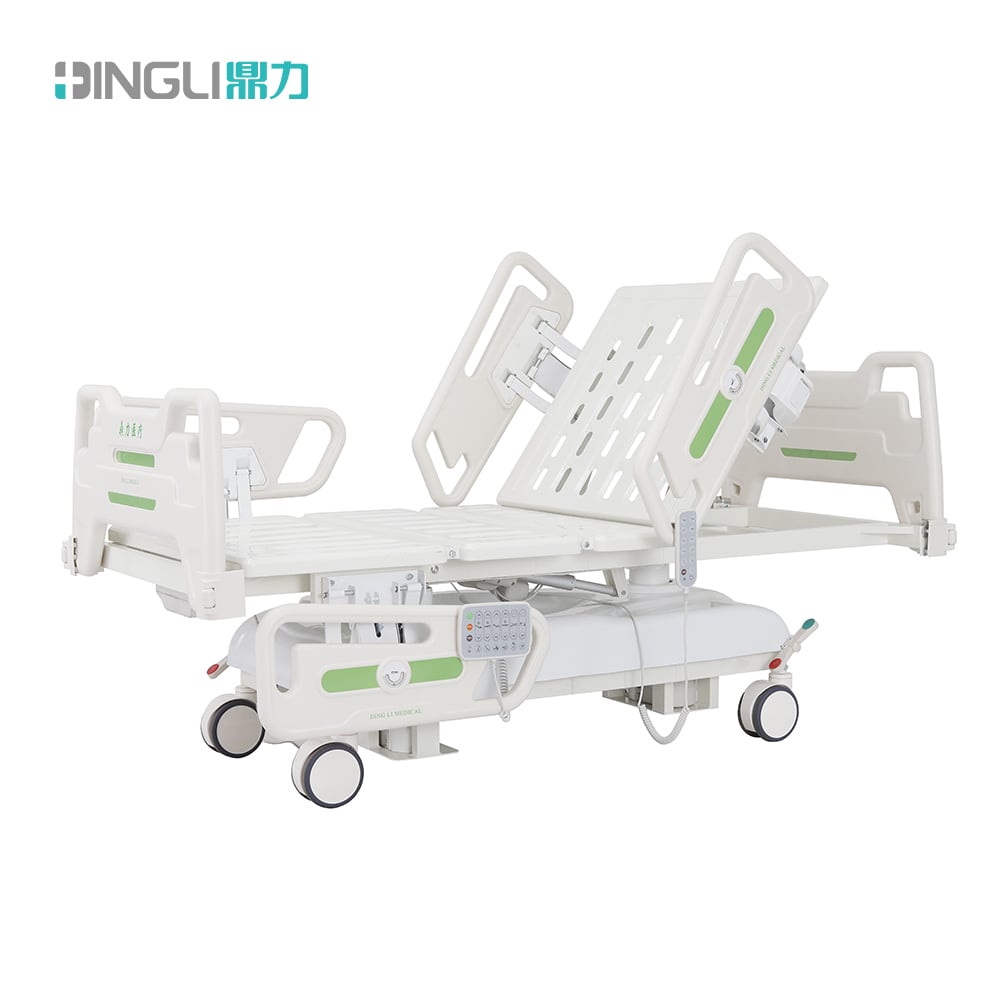

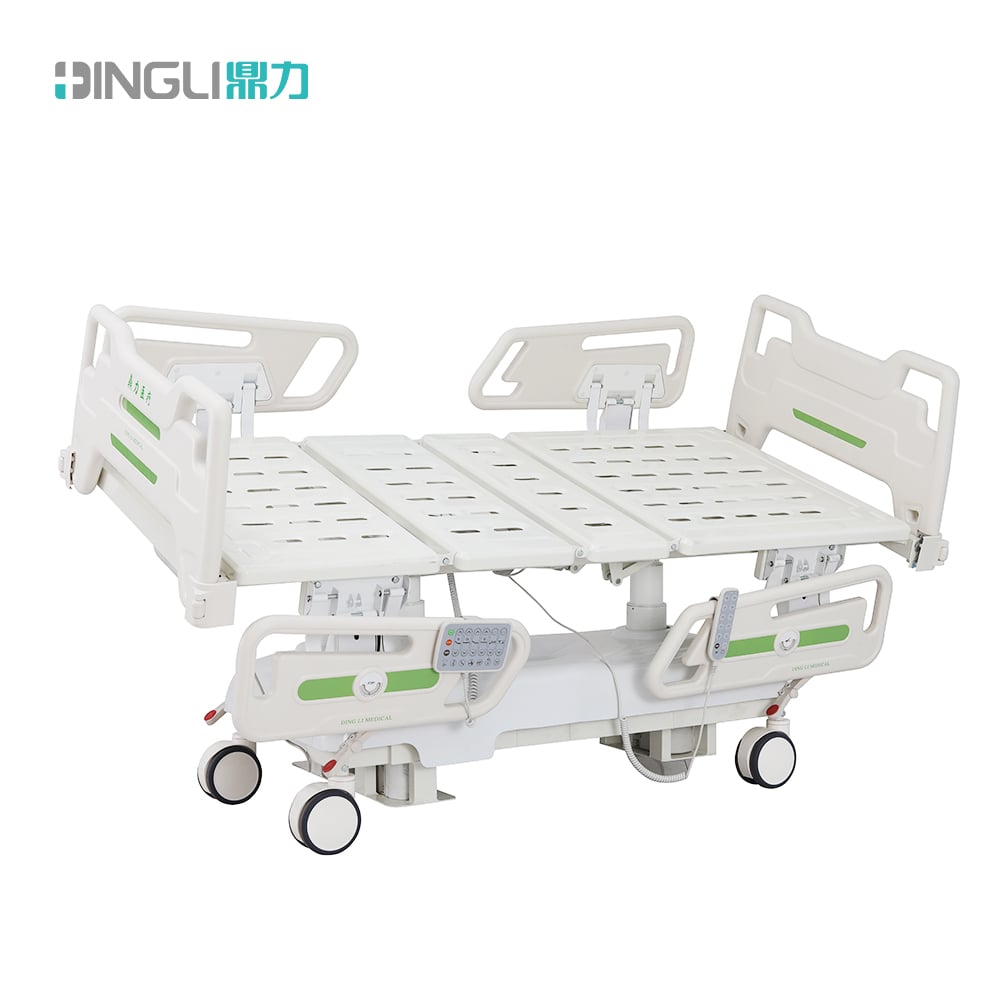

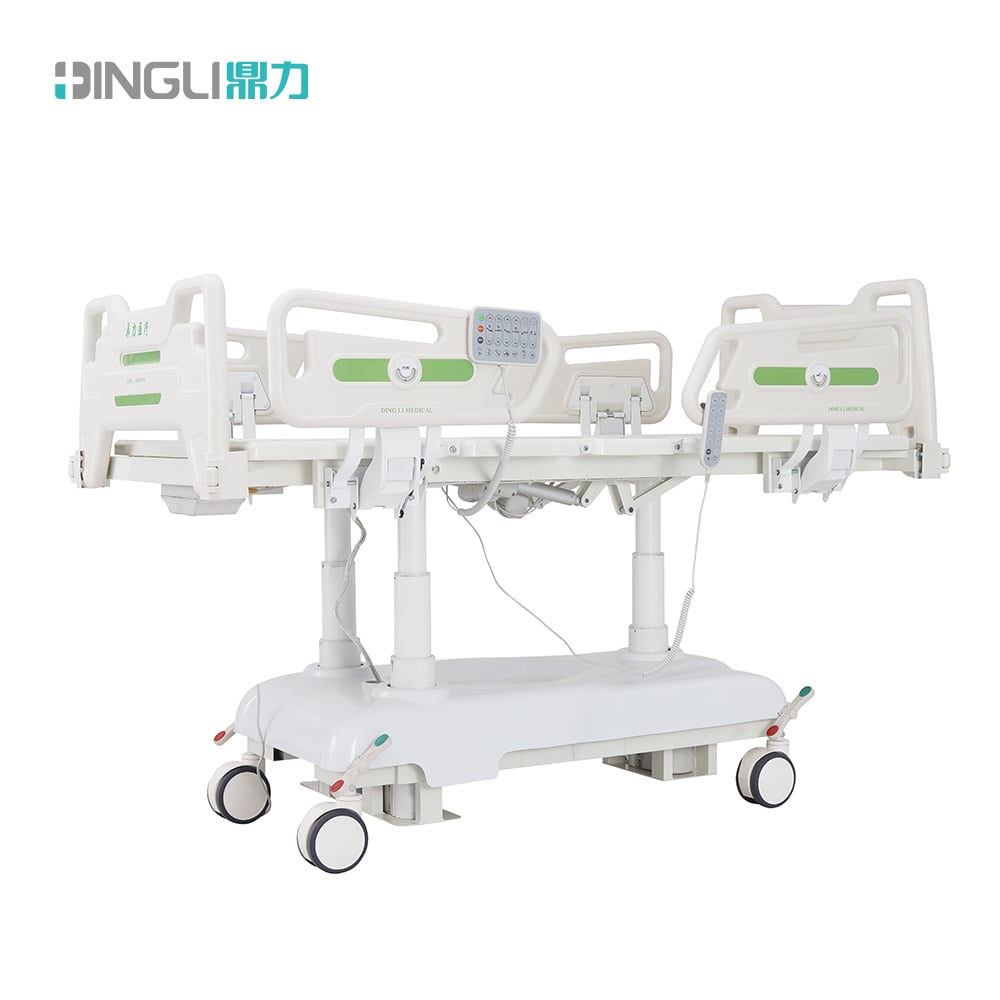

DingLi multifunction three-column electric ICU bed DL-EFF-04 (seven function)

Configuration: Bed (integrated perforated design) + Jiechang electric control guardrails + Jiechang electric control head/footboard + 5-inch side brake wheels (with a foot pedal) + Jiechang dual-column motor (emergency stop, battery backup, anti-pinch backboard, electric and manual CPR).
Dimensions: 2220*1120*(555-855) mm ± 50 mm.

1. Bed Board Material: Frame made of 30*60*1.2 mm high-quality steel pipes; surface of 1.0 mm carbon steel plate, one-piece stamped.

2. Head and Footboard: PP blow-molded material with a locking device.

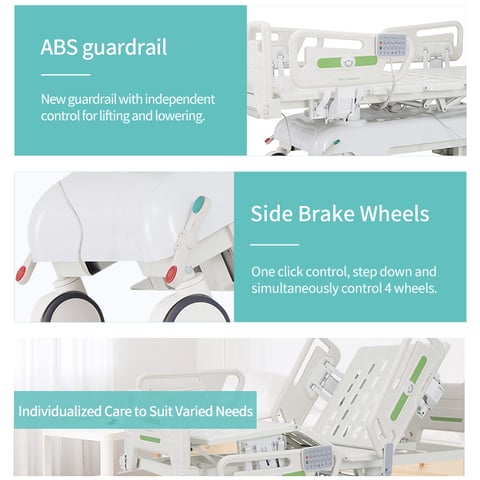

3. Guardrail Design: PP electric control with four guardrails.

4. Wheels: Four luxury 5-inch swivel wheels with side brakes.

5. Motor: Jiechang dual-column motor with battery backup.

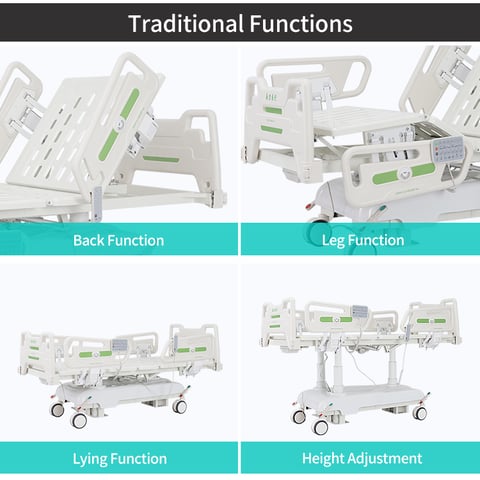

Angle Parameters:

6. Backrest: 0-75° ± 5°

7. Leg lift: 0-33° ± 5°

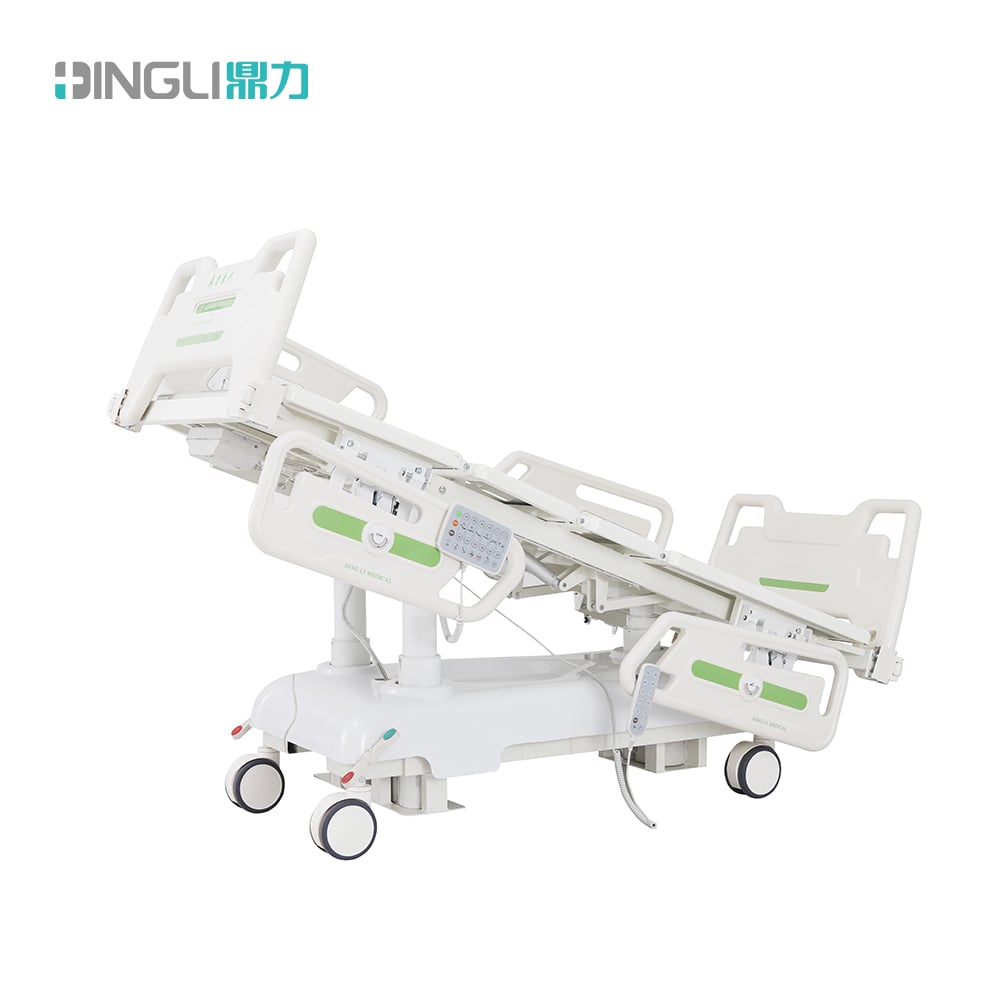

8. Trendelenburg: 15°; reverse Trendelenburg: 15°

9. Left tilt: 20°; right tilt: 20°

10. Overall lifting height: 555-885 mm

11. Load Capacity: ≥240 KG

Product Description

Introducing the DingLi Electric ICU Bed DL-EFF-04: The ultimate solution for healthcare providers seeking advanced care management for their patients. This multifunctional bed has a three-column structure that enhances stability and promotes greater safety. The bed features seven functions, making it highly versatile and adaptable to different patient needs. The bed is equipped with electric controls that allow quick and effortless adjustments to various bed positions, saving valuable time for caregivers. With a strong emphasis on the patient's comfort and safety, this bed is designed to prevent bedsores, and its flexible head and foot sections help relieve pressure for patients with breathing difficulties. The DingLi Electric ICU Bed DL-EFF-04 is a game-changer in medical equipment manufacturing and is the perfect choice for patients and healthcare providers.

Product Features

• Multifunction three-column design
• Electric ICU bed
• DL-EFF-04 model with seven functions
• Sturdy and reliable, suitable for medical environments

Application of electric ICU bed

• Designed for use in Intensive Care Units (ICUs).
• Three-column electric ICU bed with seven functions, appropriate for treatment of critically ill patients.
• The bed is equipped with multiple adjustable features for maximum comfort and convenience for patients and medical personnel.
• Can be used for respiratory support, monitoring, and other necessary medical interventions.
• Provides safe and secure positioning for patients during medical procedures and treatments.
• Easy-to-use controls and intuitive design make it simple for medical personnel to adjust and operate the bed.
• The multifunction design saves time and effort for medical personnel and helps streamline critical care processes.
