| 구성 | Electric 3-Function Bed (천공판) + Wooden Boards + Iron Guardrails + Dual Casters |
|---|---|
| 전체 치수 | 2080 * 990 * 390-710mm (±50mm) |
| 머리 & 발판 | Premium Wooden Material (치수: 1020 * 730 * 25mm, identical sizing) |
| 재료 | 30*60*1.2mm 탄소강 프레임 & 1.0mm 펀치 플레이트 (산성 세척 & 분체 코팅) |
| 난간 | Y-01 Rotary Iron Guardrails (Length 1160mm, Height 515mm, Adjustable in 30°/60°/90° increments) |
| Motor System | Premium Jieshun 1-to-3 Motor |
| 캐스터 | Four 5-inch Luxury Universal Casters (Built-in dual bearings, 4-wheel independent brakes) |
| 조정 각도 | 등받이: 0 - 75° (±5°)다리 고도: 0 - 45° (±5°) |
| 높이 조정 | 400mm - 700mm (±50mm) |
| 중량 용량 | ≥ 240 KG |

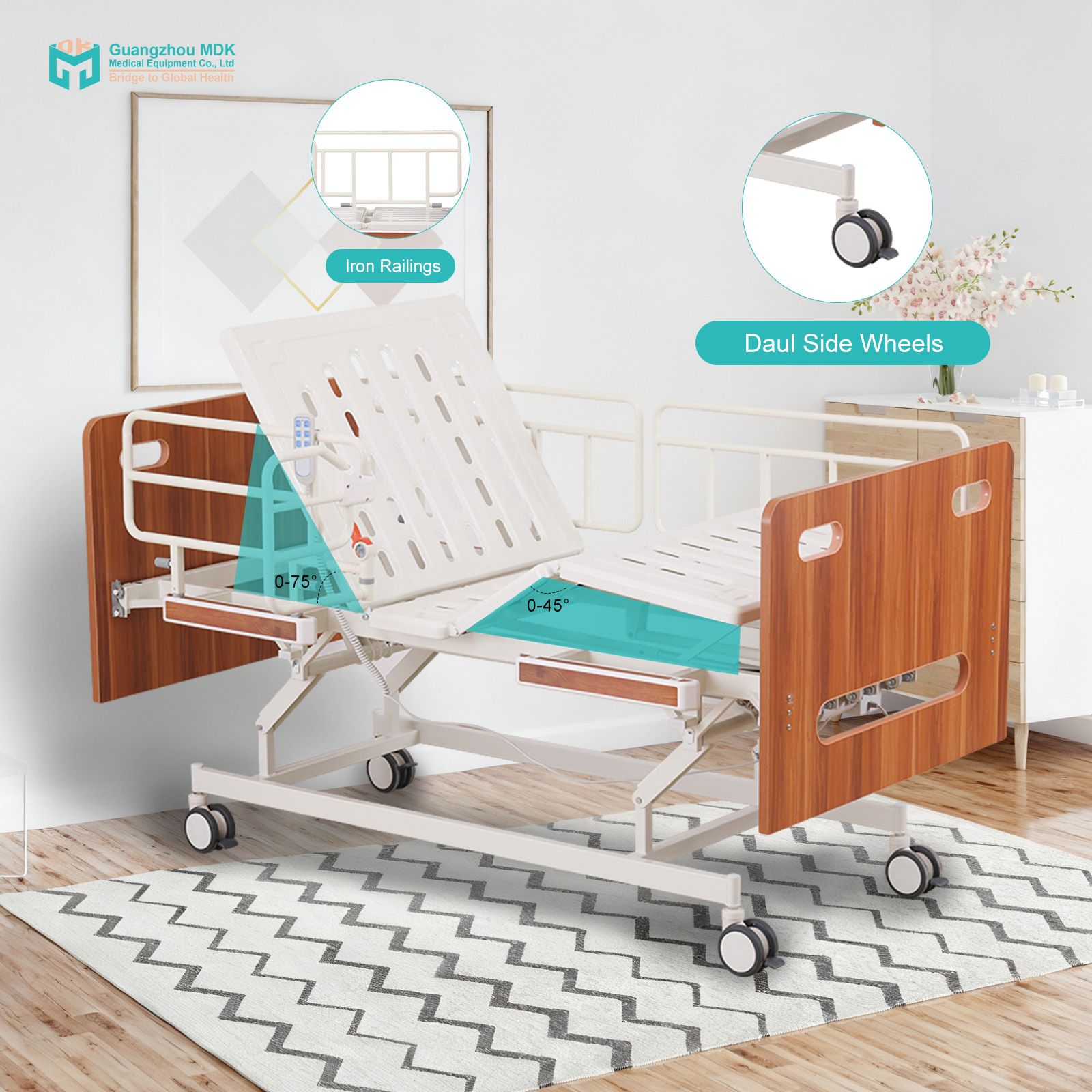

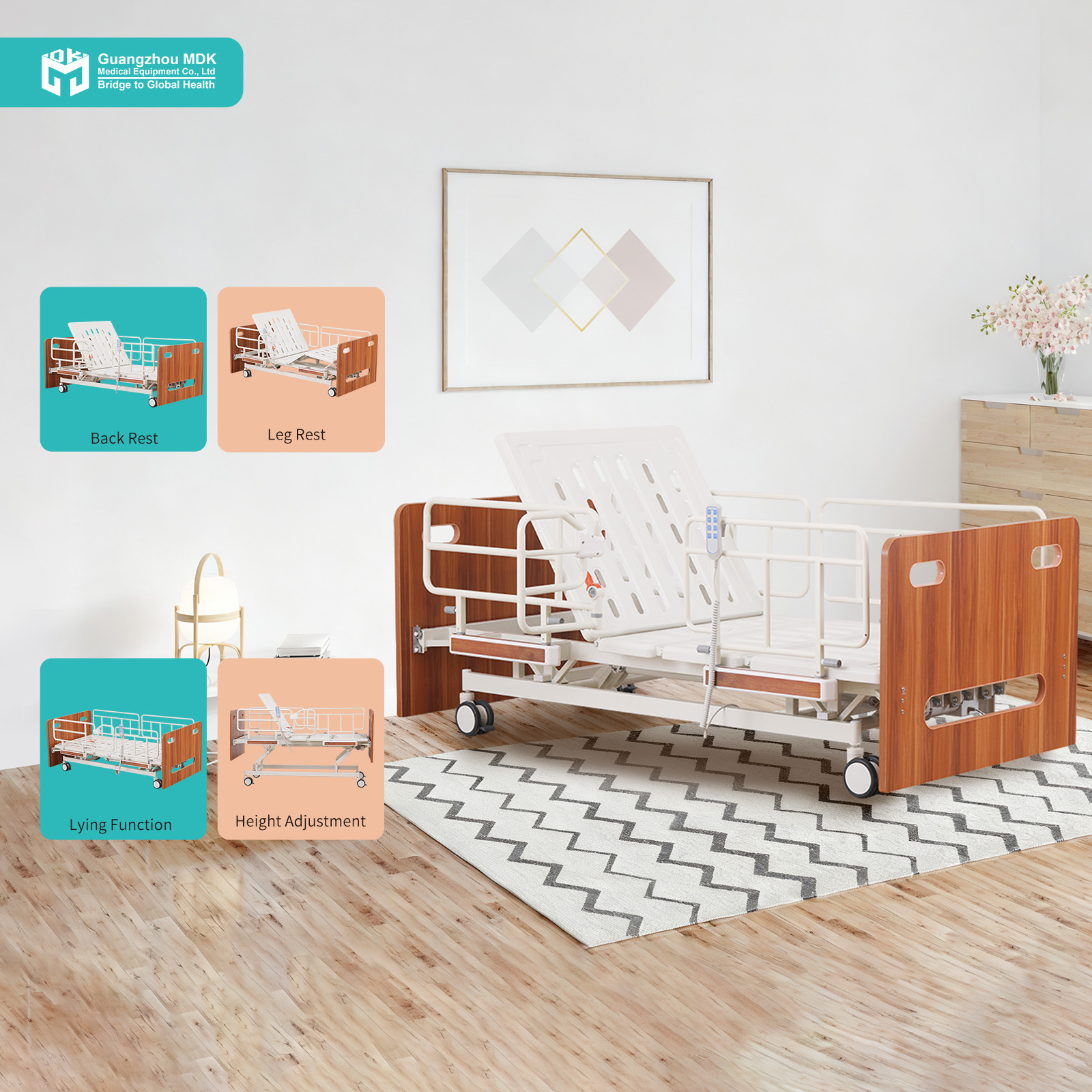

Engineered to bridge the gap between hospital capability and home comfort, this electric nursing bed features a highly reliable Jieshun 1-to-3 motor system. Caregivers and patients can effortlessly adjust the backrest (0-75°), leg elevation (0-45°), 그리고 전체 침대 높이 (400-700mm). This functional versatility is perfectly complemented by the elegant wooden head and foot boards, which eliminate the cold clinical feel and seamlessly blend into any residential decor.
Patient safety and rehabilitation support are maximized with the specialized Y-01 iron guardrails. Measuring 1160mm in length and 515mm in height, these guardrails are welded from robust 25 * 12mm round tubes and finished with a durable powder coating. Mounted securely on the sides (400mm center distance), they feature an innovative rotary knob mechanism that allows adjustment in precise 30° increments (30°, 60°, 90°). This exceptional design not only prevents falls but actively provides sturdy support for patients when sitting up, turning over, or safely transitioning out of bed.
The foundation of this bed is exceptionally robust. The main frame is constructed from 30 * 60 * 1.2mm 고품질 탄소강 파이프, 1.0mm 두께의 일체형 펀치 탄소강판과 결합. To guarantee long-lasting performance, the entire steel framework undergoes a strict pickling and phosphating (산성 세척) 전처리. 첨단 정전분체도장 공정을 거쳐, 마감재가 금속에 단단히 접착됩니다., effectively preventing peeling, 녹슬고 있는, and corrosion. 대중교통용, it is equipped with four 5-inch luxury universal casters, featuring built-in dual bearings and a 4-wheel braking system for rock-solid stability.
